Professional Support Customized Rail Transfer Cart With 10T Capacity

  • Professional Support Customized Rail Transfer Cart With 10T Capacity
  • Professional Support Customized Rail Transfer Cart With 10T Capacity
  • Professional Support Customized Rail Transfer Cart With 10T Capacity
  • Professional Support Customized Rail Transfer Cart With 10T Capacity
  • Professional Support Customized Rail Transfer Cart With 10T Capacity
  • Professional Support Customized Rail Transfer Cart With 10T Capacity
Luogo di origine Henan, Cina
Marca BEFANBY
Certificazione CE,SGS,ISO9001
Numero di modello KPX
Quantità di ordine minimo 1 set/set
Prezzo Negoziabile
Imballaggi particolari La fabbrica di auto piatta elettrica verrà confezionata con la tela, le parti verranno spedite in un
Tempi di consegna 40-50 giorni come consegna usuale, 30-40days per la consegna urgente
Termini di pagamento L/C,T/T,Western Union
Capacità di alimentazione 1000 set/set all'anno
Dettagli
Materiale Q235 Velocità di corsa 0-20 m/min
Capacità di carico 1-1000T Alimentazione elettrica Alimentazione a batteria
Tipo di operazione Mano pendente + telecomando Materiale delle ruote Isolato
Lasciate un messaggio
Descrizione di prodotto

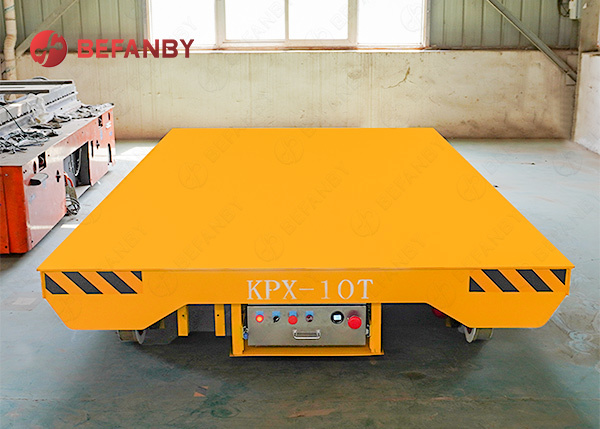

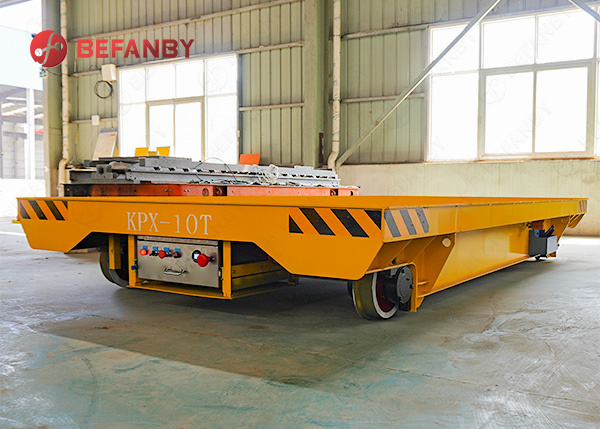

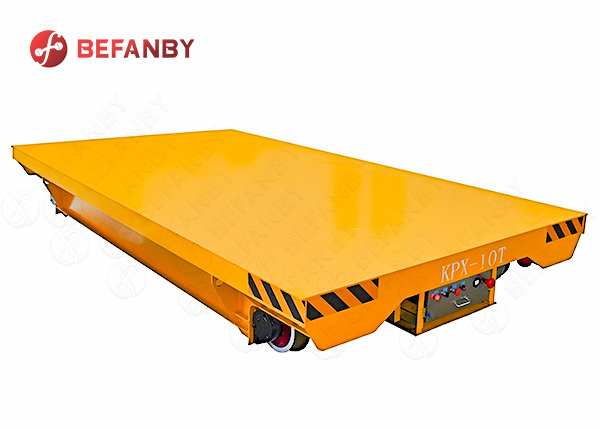

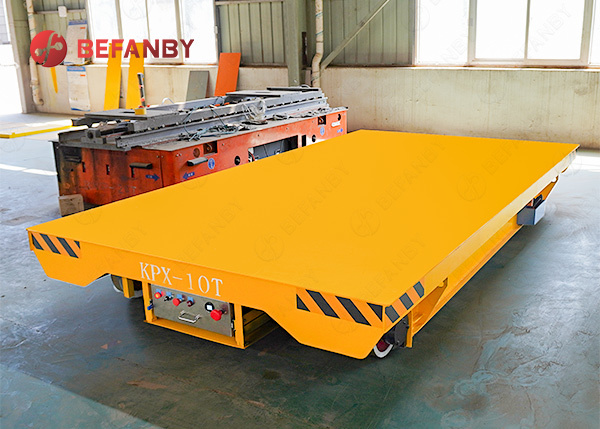

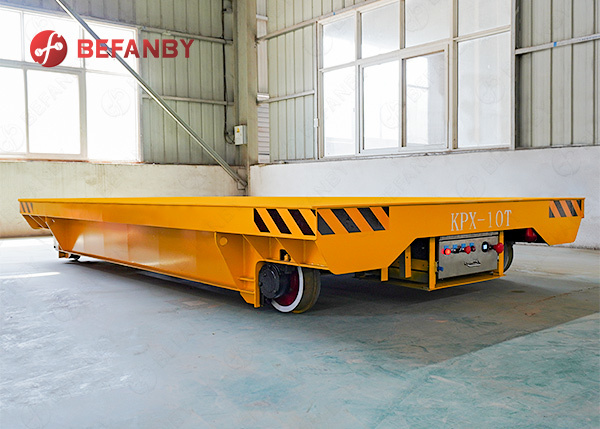

Professional Support Customized Rail Transfer Cart With 10T Capacity
1. Product Introduce

To meet the diverse transportation needs of different enterprises, our battery-powered rail transfer carts offer non-standard customization; the entire process—from conceptual design and drawing approval to manufacturing—is tailored to the client's specific operational conditions. The carts can be designed with various deck configurations, such as flatbed, ladle, lifting, or coil-handling types, and offer customizable colors and aesthetics, making them suitable for transporting large steel components, molds, coils, machinery, and other heavy workpieces.

Professional Support Customized Rail Transfer Cart With 10T Capacity 0

2. Successful Solution

Professional Support Customized Rail Transfer Cart With 10T Capacity 1

3. Befanby Material Handling Equipment Introduce

Professional Support Customized Rail Transfer Cart With 10T Capacity 2


Welcome to inquiry us if you'd like to learn more

4. Technique Parameter
Model KPX-2t KPX-5t KPX--10t KPX--16t KPX-20t KPX-25t KPX-30t KPX-40t KPX-50t KPX-63t
Rated load 2 5 10 16 20 25 30 40 50 63
Table size Length(L) 2000 3500 3600 4000 4000 4500 4500 5000 5500 5600
Width(W) 1500 2000 2000 2000 2200 2200 2200 2500 2500 2500
Height(H) 450 450 500 500 550 600 600 650 650 750
Wheel Base 1200 2500 2600 2800 2800 3200 3200 3800 4200 4300
Rail Inner Gauage 1200 1435 1435 1435 1435 1435 1435 1435 1435 1435
Wheel Diameter 270 300 300 350 350 400 400 500 500 600
Wheel Quantity 4 4 4 4 4 4 4 4 4 4
Ground Clearance 50 50 50 50 50 50 50 50 50 75
Running Speed 0-25 0-25 0-25 0-20 0-20 0-20 0-20 0-20 0-20 0-20
Motor Power 1 1.2 1.6 2 2.2 3 3.5 4 5 6.3
Transformer Power 3 5 5 6.8 6.8 6.8 10 10 10 20
Transformer Quatity 1 1 1 1 1 1 1 1 1 1
Running Distance 80 80 80 80 80 80 80 60 50 50
Max Wheel Load 14.4 25.8 42.6 64.5 77.7 94.5 110.4 142.8 174 221.4
Reference Weight 2.8 3.6 4.2 5.5 5.9 6.5 6.8 7.6 8 10.8
Recommended Rail Model P15 P18 P18 P24 P24 P38 P38 P43 P43 P50
5.Our Advantages

Professional Support Customized Rail Transfer Cart With 10T Capacity 3

Battery-powered operation eliminates the range limitations imposed by cable length, allowing for flexible routing; the system offers extended operating time based on battery capacity and supports rapid charging. Combined with a mature drive system and safety protection mechanisms, the vehicle ensures stable operation and a long service life, making it an ideal material handling solution for modern smart factories, automated production lines, and heavy manufacturing enterprises.

6.Exported Company

Professional Support Customized Rail Transfer Cart With 10T Capacity 4
Professional Support Customized Rail Transfer Cart With 10T Capacity 5
Professional Support Customized Rail Transfer Cart With 10T Capacity 6

Tag: Battery Power transfer car, Custom Transfer Trolley
