Intelligent With Flip Arm Annealing Furnace 15Trailway Guided Vehicle

  • Intelligent With Flip Arm Annealing Furnace 15Trailway Guided Vehicle
  • Intelligent With Flip Arm Annealing Furnace 15Trailway Guided Vehicle
  • Intelligent With Flip Arm Annealing Furnace 15Trailway Guided Vehicle
  • Intelligent With Flip Arm Annealing Furnace 15Trailway Guided Vehicle
Place of Origin Henan,China
Marca BEFANBY
Certificazione CE,SGS,ISO9001
Model Number lift platform
Minimum Order Quantity 1 set/sets
Prezzo Negoziabile
Packaging Details The movable lifting platform will be packed by the tarp, the parts will be shipped in the high quality wooden case.
Delivery Time 20-30 days as usual delivery
Payment Terms L/C,T/T,Western Union
Supply Ability 1500 set/sets, per year

Contattimi gratis campioni e buoni.

whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Se avete di preoccupazione, forniamo la guida in linea di 24 ore.

x
Dettagli
Color Customized Warranty 24 months
Load capacity Customized Power supply Battery Operated
Port Qingdao/Tianjin/Shanghai Application aerial working,factory,workshop,construction site
Materials Steel
Evidenziare

intelligent rail transfer cart

,

flip arm annealing furnace

,

guided vehicle rail cart
Lasciate un messaggio
Descrizione di prodotto

Intelligent With Flip Arm Annealing Furnace 15Trailway Guided Vehicle

Product Description

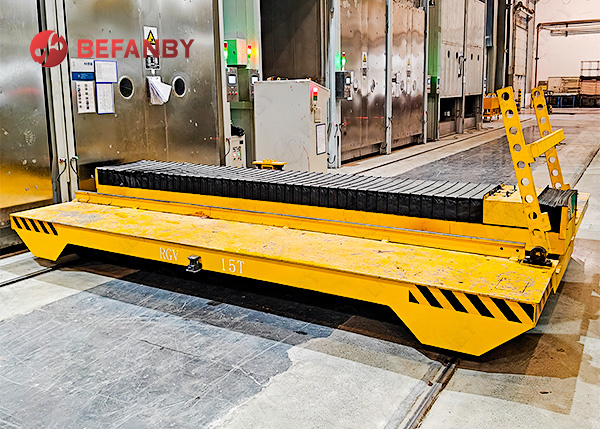

Recently, the RGV intelligent transporter developed and produced by our company was successfully delivered and put into use. It is mainly used in the automatic transportation and docking system of annealing furnaces. This transporter has high temperature tolerance, intelligent path control and high-precision positioning functions. It can operate continuously and stably in high temperature and complex environments, improving the overall automation level of the workshop and transportation safety efficiency.


Intelligent With Flip Arm Annealing Furnace 15Trailway Guided Vehicle 0

Product Details

Intelligent With Flip Arm Annealing Furnace 15Trailway Guided Vehicle 1


The rail transfer cart supports multiple functional customization, such as adding rollers, chain conveyors, hydraulic/scissor lifts or coil racks on the vehicle body to achieve precise docking with the production line and automated material flow. The vehicle structure is sturdy and durable, the operating system is stable and safe, and it can be operated by wireless remote control. Further improve the operating efficiency and automation level.

Product Parameter

Model KPD-10t KPD-16t KPD-25t KPD-30t KPD-40t KPD-50t KPD-63t KPD-80t KPD-100t KPD-150t
Rated Load 10 16 25 30 40 50 63 80 100 150
Table size Length(L) 3600 4000 4500 4500 5000 5500 5600 6000 6500 10000
Width(W) 2000 2000 2200 2200 2500 2500 2500 2600 2800 3000
Height(H) 500 550 600 600 650 650 700 800 900 1200
Wheel Base 2600 2800 3200 3200 3800 4200 4300 4700 4900 7000
Rail Inner Gauage 1435 1435 1435 1435 1435 1435 1435 1800 2000 2000
Wheel Diameter 300 350 400 400 500 500 600 600 600 600
Wheel Quantity 4 4 4 4 4 4 4 4 4 8
Ground Clearance 50 50 50 50 50 50 75 75 75 75
Running Speed 25 20 20 20 20 20 20 20 20 18
Motor Power 2 2.2 3.5 4 5 6.3 8 10 15 15
Battery Capacity 160 180 250 250 300 330 400 400 440 600
Battery Voltage 48 48 48 48 48 48 48 72 72 72
Max Wheel Load 42.6 64.5 94.5 110.4 142.8 174 221.4 278.4 343.8 265.2
Reference Weight 4.2 5.5 6.5 6.8 7.6 8 10.8 12.8 14.6 26.8

Product Feature

Intelligent With Flip Arm Annealing Furnace 15Trailway Guided Vehicle 2

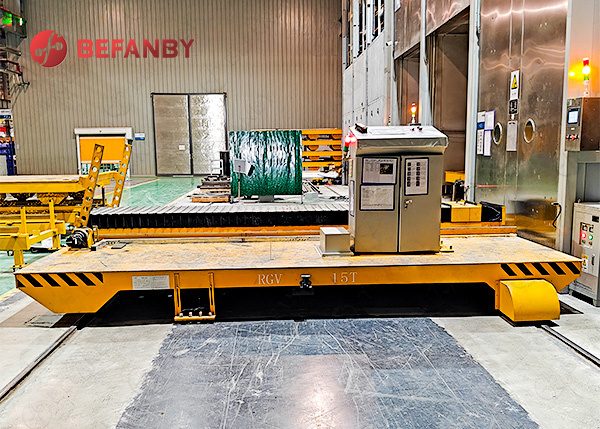

This design of RGV intelligent transporter adopts high temperature resistant body structure, and the table is equipped with refractory bricks. It can effectively protect the service life of the body. At the same time, the core electrical components have undergone special insulation and protection treatment, which can operate for a long time under high temperature conditions, keeping the system responsive and running smoothly.
The equipment supports intelligent docking with multiple processes such as annealing furnaces, conveyor lines, and material racks, and has intelligent handling capabilities such as automatic loading and unloading and precise positioning, which greatly reduces manual operations and optimizes material flow efficiency.

Our Company

Intelligent With Flip Arm Annealing Furnace 15Trailway Guided Vehicle 3

Intelligent With Flip Arm Annealing Furnace 15Trailway Guided Vehicle 4

Intelligent With Flip Arm Annealing Furnace 15Trailway Guided Vehicle 5




Support Customized

Intelligent With Flip Arm Annealing Furnace 15Trailway Guided Vehicle 6

Intelligent With Flip Arm Annealing Furnace 15Trailway Guided Vehicle 7

Related Products

Intelligent With Flip Arm Annealing Furnace 15Trailway Guided Vehicle 8


Our After Service
  • Our commitment:
  • The load bearing safety factor of the trolley is no less than 120%.
  • Freely design the auxiliary device or foundation drawing, and offer the technical service and drawing material
  • 16 hours engineering service and 24 hours internet service for our customers
  • During the warranty period, if our products can't work normally, we can support you repair technology or replace relevant parts for you within 24 hours.
  • Solving the quality problem within 24 hours, serious attitude from beginning to end. Value the reputation and Preserve the image of our company.


Intelligent With Flip Arm Annealing Furnace 15Trailway Guided Vehicle 9
