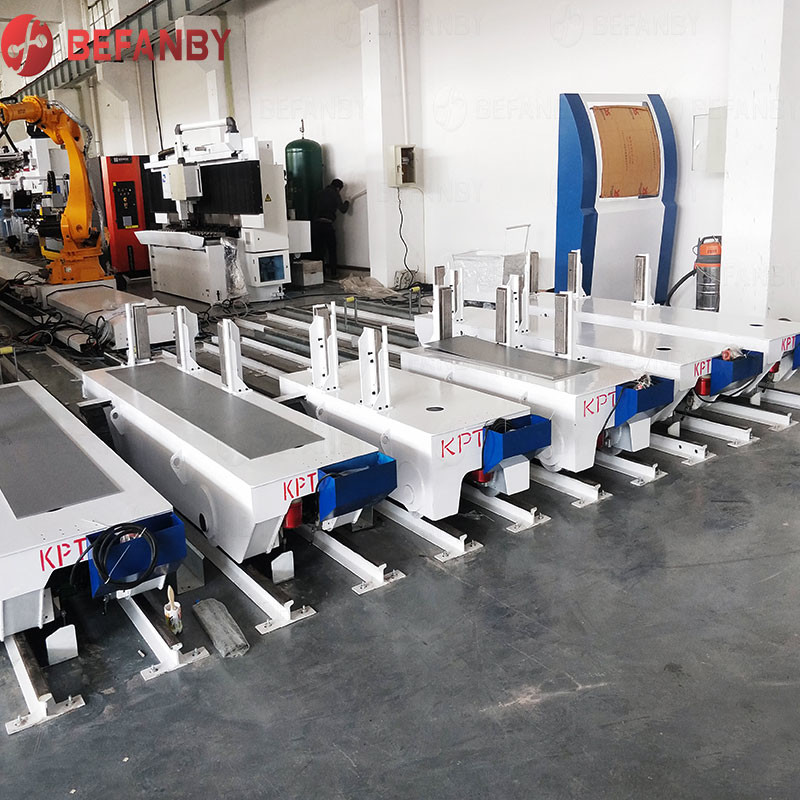

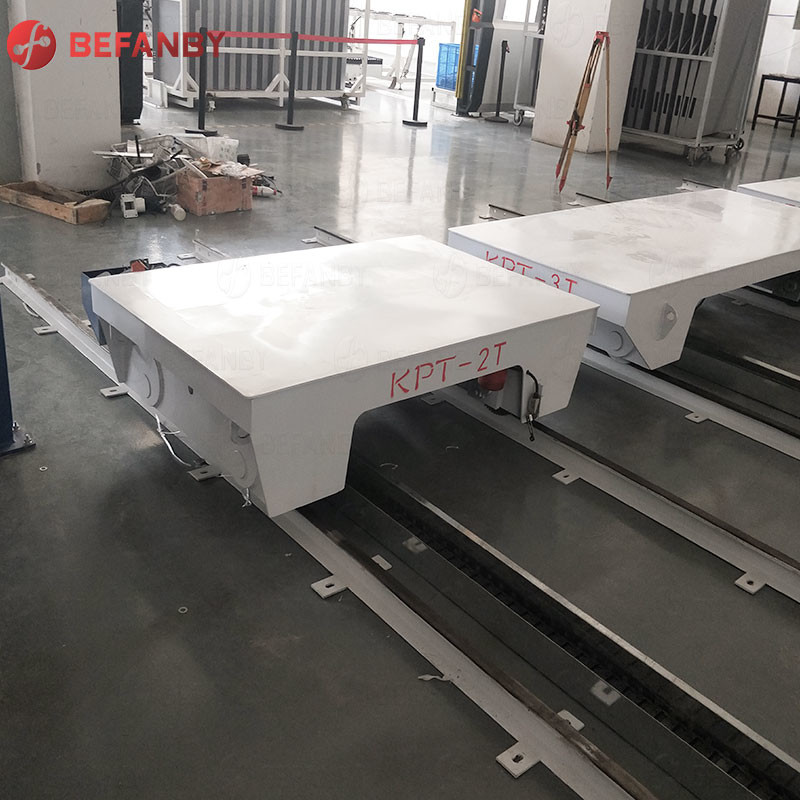

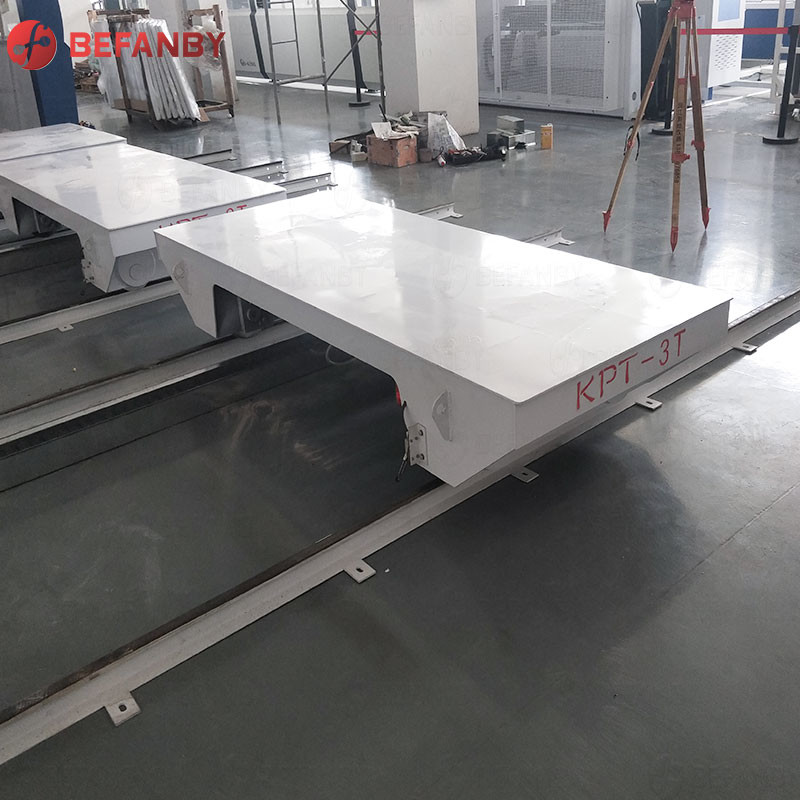

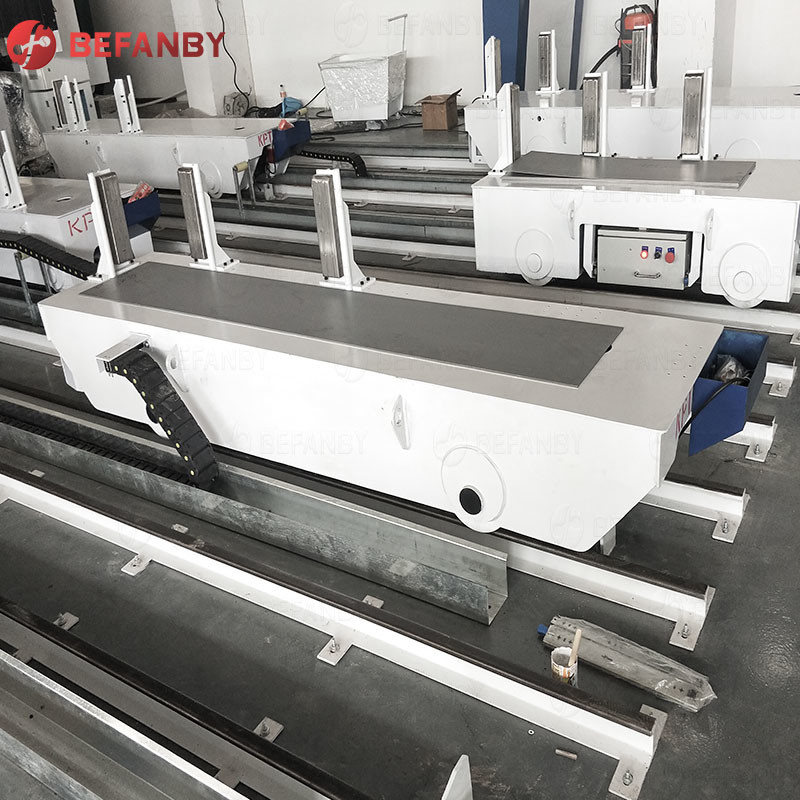

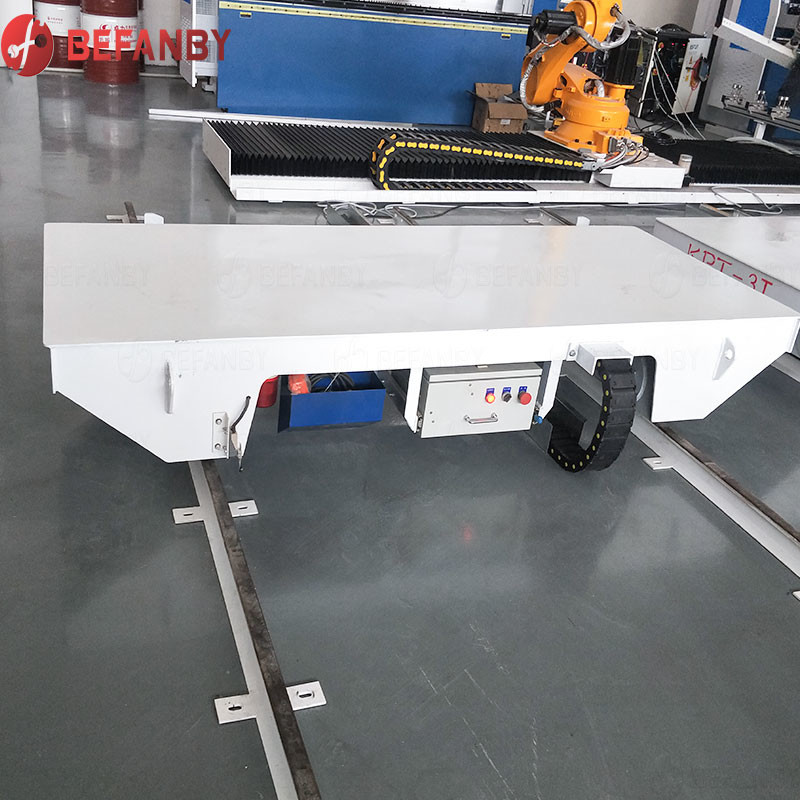

3T Capacity Mobile Cable Factory Railway Material Transfer Carts

  • 3T Capacity Mobile Cable Factory Railway Material Transfer Carts
  • 3T Capacity Mobile Cable Factory Railway Material Transfer Carts
  • 3T Capacity Mobile Cable Factory Railway Material Transfer Carts
  • 3T Capacity Mobile Cable Factory Railway Material Transfer Carts
  • 3T Capacity Mobile Cable Factory Railway Material Transfer Carts
  • 3T Capacity Mobile Cable Factory Railway Material Transfer Carts
Place of Origin Xinxiang
Marca BEFANBY
Certificazione CE,SGS,ISO9001
Model Number KPT-3T
Minimum Order Quantity 1 pcs
Prezzo Negoziabile
Packaging Details Electrical parts will add shields. As required by the customer, we can add a fixed packing.
Delivery Time 30-40 days as usual delivery,20-30days for urgent delivery
Payment Terms 30% deposit by T/T in advance,70%balance by T/T before dispatch
Supply Ability 1500 sets one year

Contattimi gratis campioni e buoni.

whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Se avete di preoccupazione, forniamo la guida in linea di 24 ore.

x
Dettagli
Application factory transport Load capacity 70T
Car size Customized Exported countries Singapore, Australia, South Africa, Mexico
Electrical parts Siemens, Schneider, Nord Safety devices Warning lamp, siren, bumper
Power Supply Cable
Lasciate un messaggio
Descrizione di prodotto

3T Capacity Mobile Cable Factory Railway Material Transfer Carts

Product Description

This type of transfer cart needs to run on a fixed track and use a drag chain power supply method. The drag chain is embedded in the groove or moves with the movement of the transfer cart. During the operation of the transfer cart, ensure that the cables move in an orderly manner to avoid entanglement or wear. This power supply method is safe and reliable. This type of transfer cart is suitable for a variety of material handling occasions, such as: production lines, logistics transportation sites, steel plants, etc.


The equipment can be equipped with safety systems such as remote control operation, emergency stop button, infrared sensing, etc. to ensure safe and efficient operation.



3T Capacity Mobile Cable Factory Railway Material Transfer Carts 0

Technical Parameter

Model KPT-2T KPT-5T KPT-10T KPT-16T KPT-20T KPT-25T KPT-30T KPT-40T KPT-50T KPT-63T KPT-80T KPT-100T KPT-150
Rated load(t) 2 5 10 16 20 25 30 40 50 63 80 100 150
Table Size Length(L) 2000 3500 3600 4000 4000 4500 4500 5000 5500 5600 6000 6500 10000
Width(W) 1500 2000 2000 2000 2200 2200 2200 2500 2500 2500 2600 2800 3000
Heigth(H) 500 550 550 600 600 650 650 700 700 800 900 1000 1200
Wheel Base(mm) 1200 2500 2600 2800 2800 3200 3200 3800 4200 4300 4700 4900 7000
Rai Ilnner Gauge(mm) 1200 1435 1435 1435 1435 1435 1435 1435 1435 1435 1800 2000 2000
Wheel Dia.(mm) Φ270 Φ300 Φ300 Φ350 Φ350 Φ400 Φ400 Φ500 Φ500 Φ600 Φ600 Φ600 Φ600
Wheel Quantity(pcs) 4 4 4 4 4 4 4 4 4 4 4 4 8
Ground Clearance(mm) 50 50 50 50 50 50 50 50 50 75 75 75 75
Running Speed(mm) 25 25 25 20 20 20 20 20 20 20 20 20 18
Motor Power(kw) 0.8 1.5 1.5 2.2 2.5 3 4 5.5 5.5 7.5 7.5 11 15
Running distance(m) 25 25 25 25 30 30 50 50 50 50 50 50 50
Max Wheel load(KN) 14.4 25.8 42.6 64.5 77.7 94.5 110.4 142.8 174 221.4 278.4 343.8 265.2
Reference Wight(t) 2.5 3.5 4 5.2 5.6 6.2 6.5 7.3 7.8 10.5 12.3 14.1 26.2
Recommend Rail Model P15 P18 P18 P24 P24 P38 P38 P43 P43 P50 P50 QU100 QU100


Company Profile

3T Capacity Mobile Cable Factory Railway Material Transfer Carts 1

3T Capacity Mobile Cable Factory Railway Material Transfer Carts 2

3T Capacity Mobile Cable Factory Railway Material Transfer Carts 3

Main Parts

3T Capacity Mobile Cable Factory Railway Material Transfer Carts 4

Advantages

3T Capacity Mobile Cable Factory Railway Material Transfer Carts 5

Application

3T Capacity Mobile Cable Factory Railway Material Transfer Carts 6

Related Products

3T Capacity Mobile Cable Factory Railway Material Transfer Carts 7
